Specifications

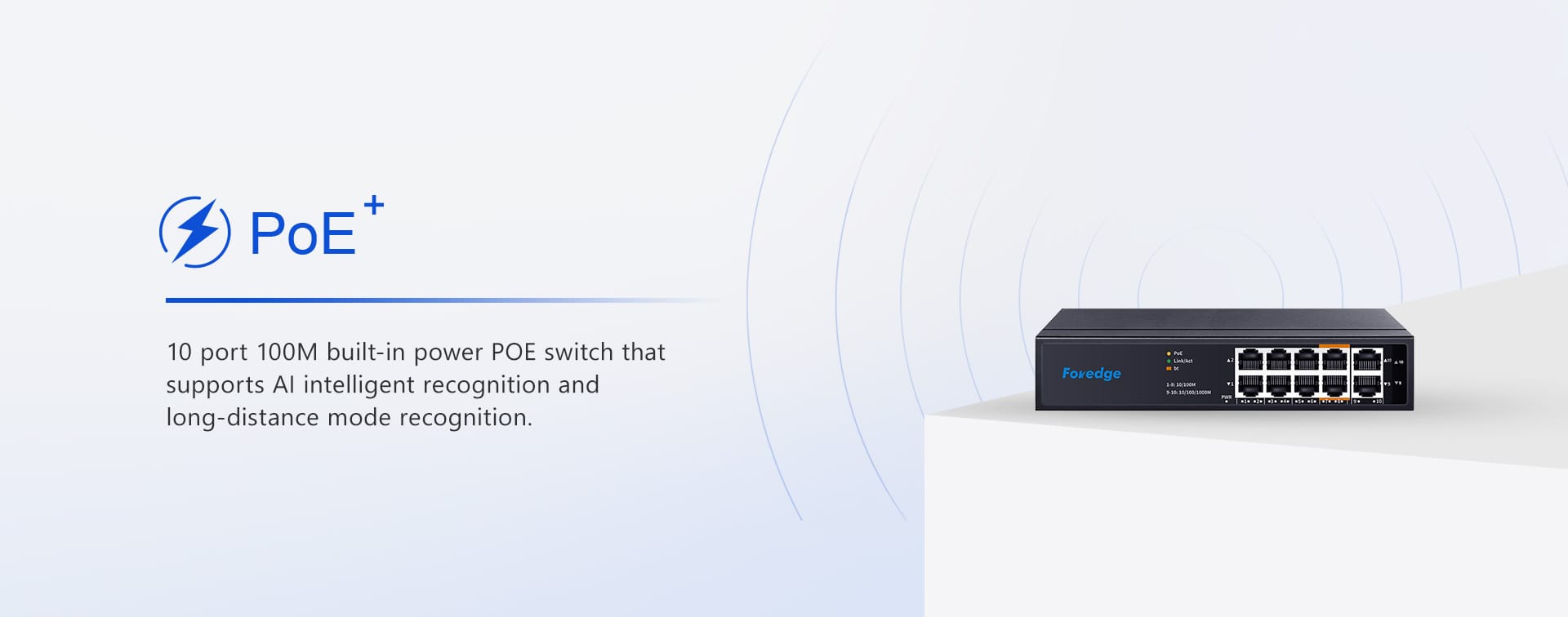

Specifications| Networking Ports | ●8*RJ-45 100M Port(PoE) ●2*RJ-45 100M Port(Up-link) |
| Networking Standards | ● IEEE 802.3i、 IEEE 802.3u、IEEE 802.3x、 IEEE 802.3af、IEEE 802.3at、IEEE 802.3bt |
| Performance | ● Bandwith ：2.0Gbps ● Packets Forwarding Rate：1.49Mpps ● MAC table size：1K ● Forwarding type：Storatge and Forwarding |
| LED | ● Power Indicator ● PoE Indicator ● LINK/ACT Indicator |
| PoE | ● 1/2( +) ，3/6(-) |
| POWER | ● Max poe power：7/8th ports max 60W; 1-6th ports max 30W ● Maximum power of power supply：65W |
| Dimension | ● W* D* H：210mm*152mm*40mm |

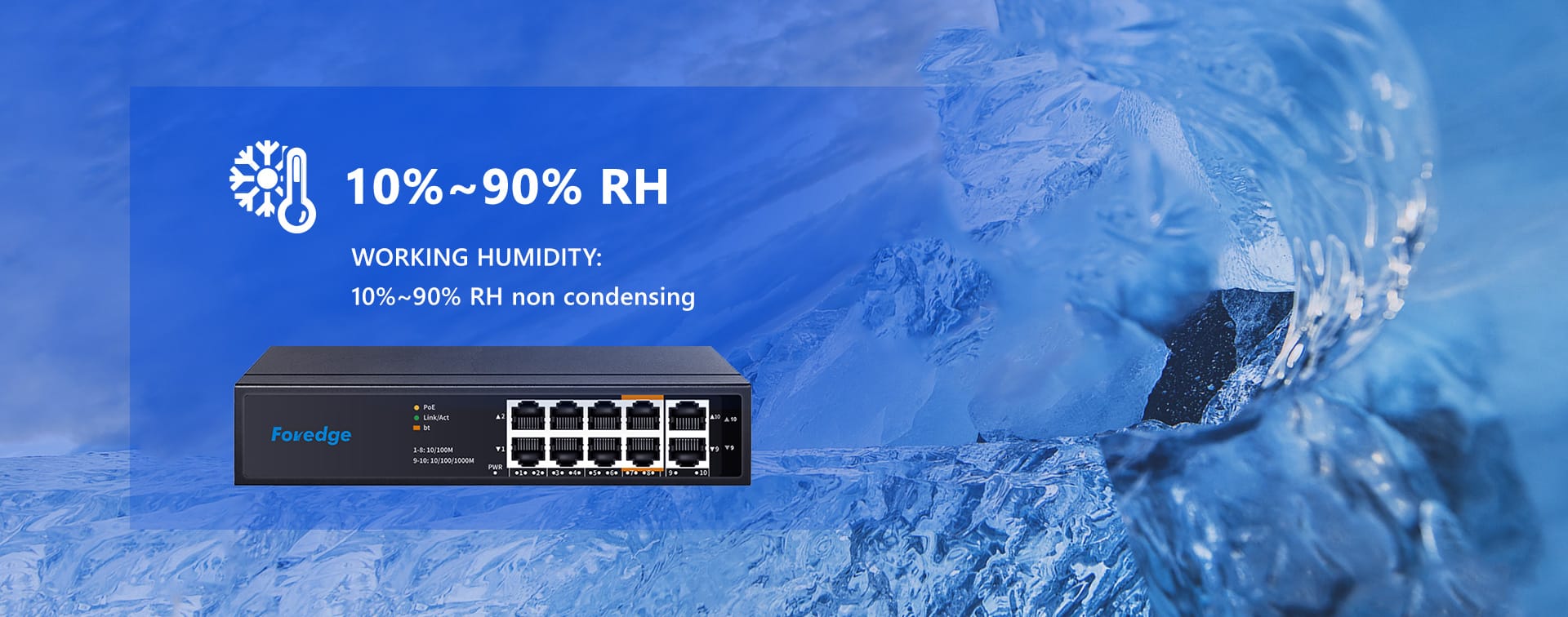

| Evironment | ● Working Temperature： 0 ° ~ 4 0 °C ● Storage Temperature： -40℃〜 70℃ ● Working Humidity： 10% ~ 90% RH nun-condensing ● Storage Humidity： 5 % ~ 9 0% RH nun- condensing |
| Safty Compliance | ● CE/ROHS/FCC |
