Specifications
Specifications| Hardware Specifications | |||||

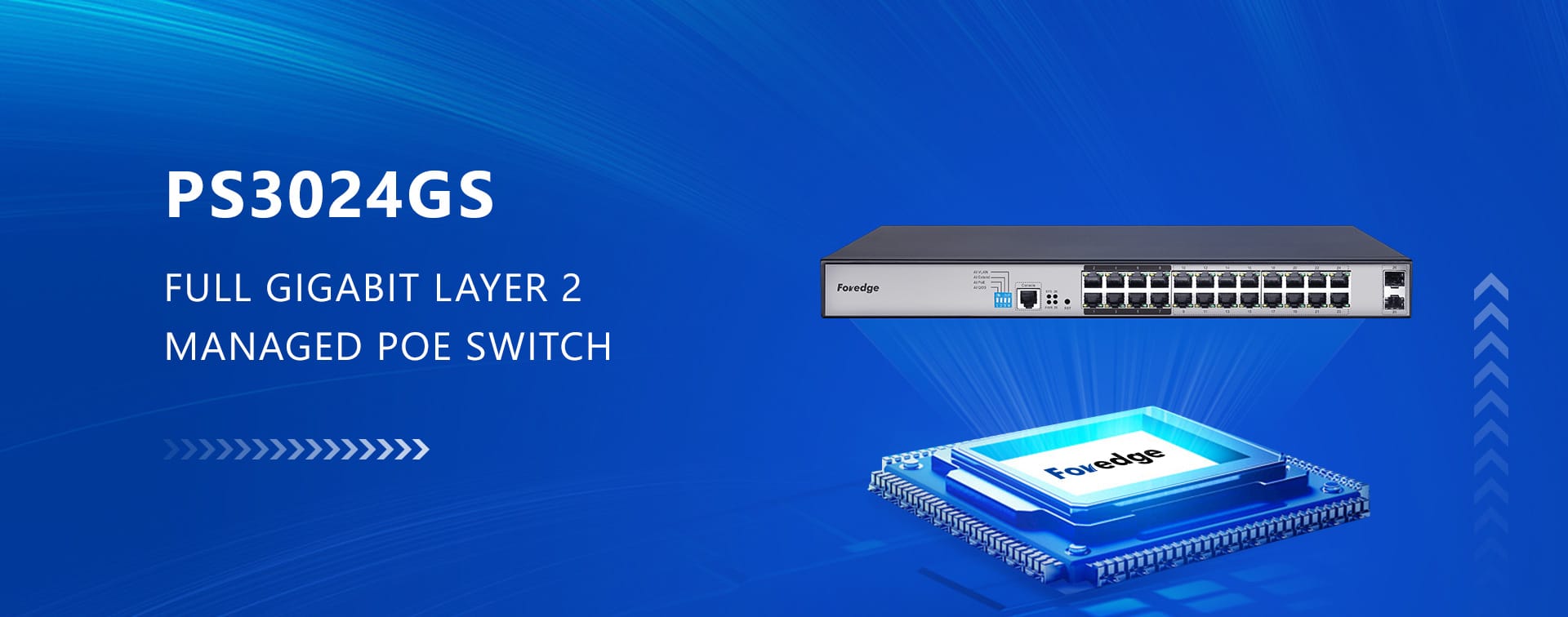

| Product number | PS201 0G | PS3016GS | PS3024GS | ||
| Network protocol standard | IEEE802.3、IEEE802.3i、IEEE802.3u、 IEEE802.3ab、IEEE802.3z、IEEE802.3ad、 IEEE802.3x、IEEE802.3af/at、IEEE802.1p、
IEEE802.1q、IEEE802.1w、IEEE802.1d、 IEEE802.1s | ||||

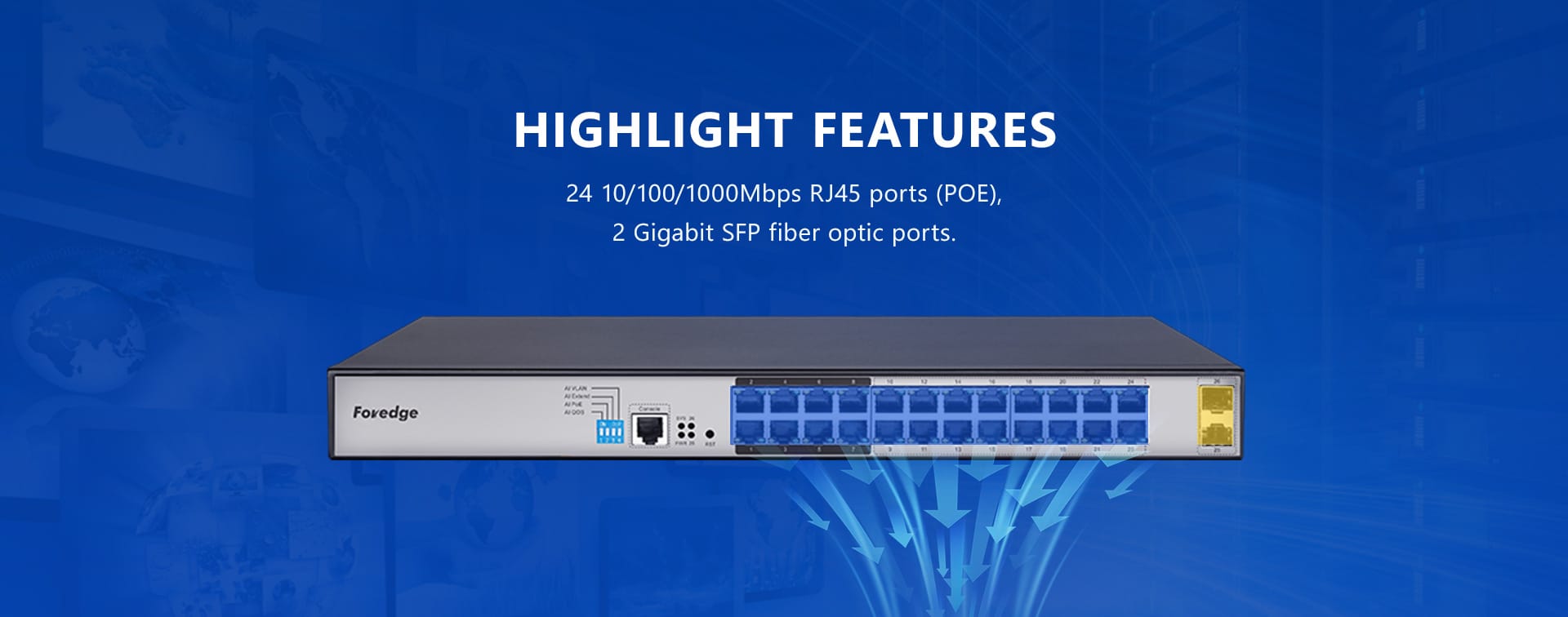

| Fixed port | Gigabit PoE port | 8 | 16 | 24 | |
| Gigabit SFP port | 2 | 2 | 2 | ||
| Console Port | 1（baud rate 115200 ） | ||||
| Performance Specifications | Forwarding mode | Store and forward | |||
| MAC address table | 8K | ||||
| Port cache | 4.1Mb | ||||
| Bandwidth | 20Gb ps | 36Gbps | 52Gbps | ||
| Packet forwarding rate | 14.9M pps | 26.8Mpps | 38.7Mpps | ||

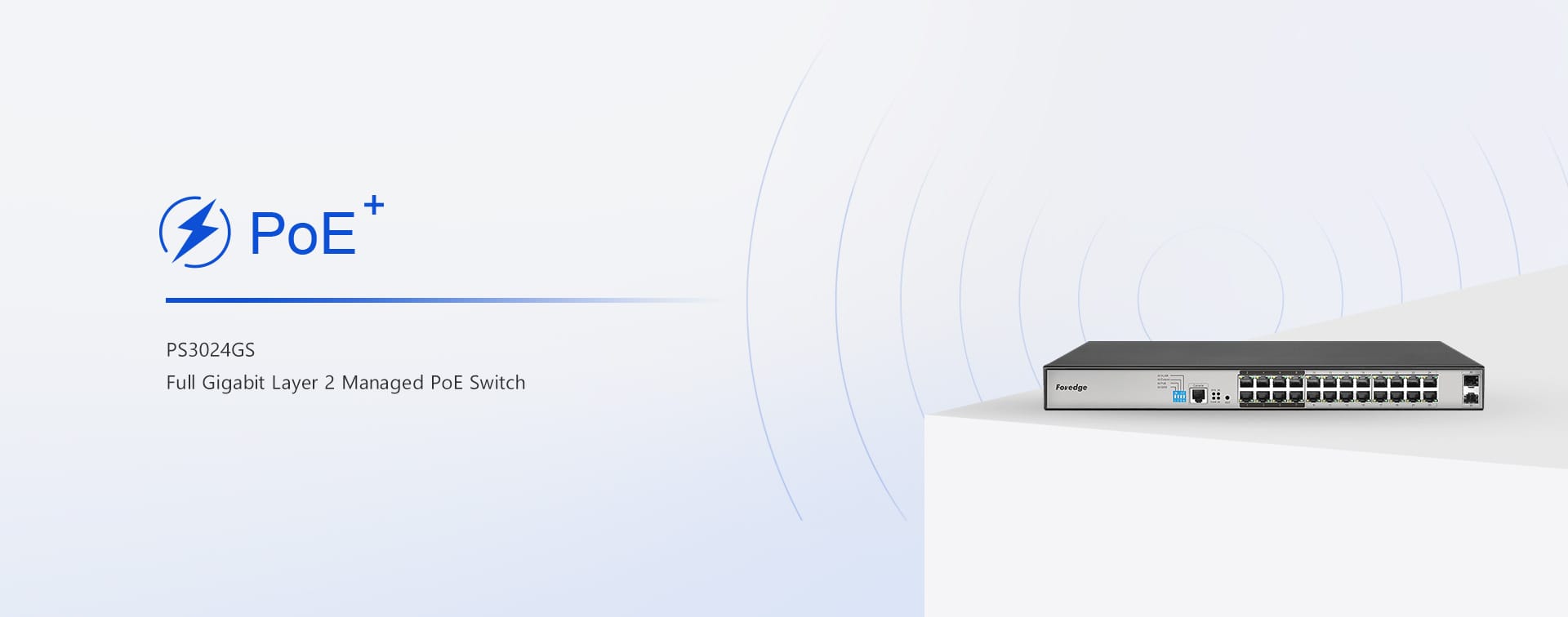

| PoE Power | PoE Standard | IEEE 802.3af、IEEE 802.3at | |||
| PoE Pin | 1/2( +) ，3/6(-) | ||||
| Port maximum power supply | 30W | ||||
| The maximum power supply of the whole machine | 150W | 150W | 250W | ||
| Input power | AC | 100-240V~ 50/60Hz | |||
| Physical Specifications | length*width*height | 285*1 80*44 mm | 440*180*44 mm | 440*180*44 mm | |

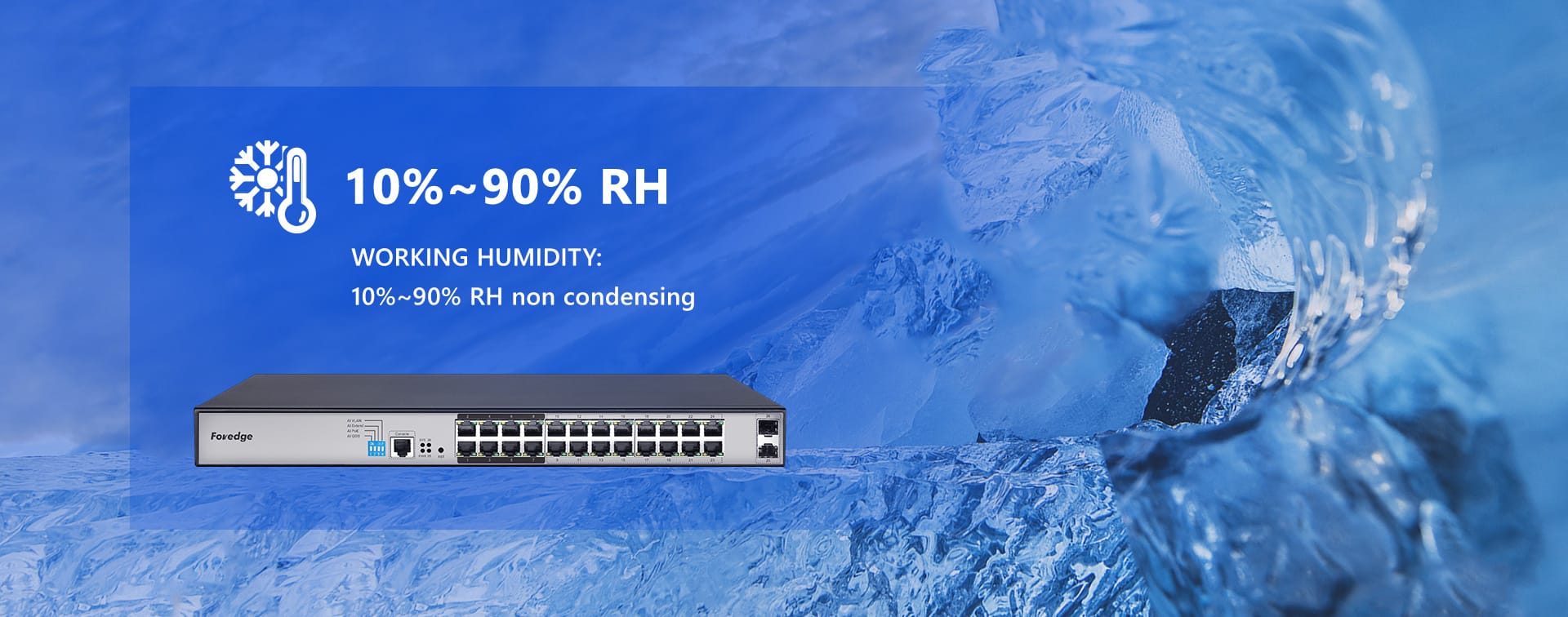

| Use environment | working environment | Working temperature: 0℃ ~ 40℃, working humidity: 10%～90%RH without condensation | |||
| storage environment | Storage temperature: -40℃ ~ 70℃, storage humidity: 5%～90%RH non-condensing | ||||
| Software Specifications | |||||
| VLAN | Support 4K VLANs Support 802.1Q VLAN、MAC VLAN ,IP VLAN | ||||
| DHCP | Support DHCP Snooping | ||||
| MAC Address table | Follow IEEE 802.1d standard Support MAC address automatic learning and aging Support static, dynamic, filtering address table | ||||
| Safety features | Password protection Support to restrict user access based on port number, IP address, MAC address Support HTTPS、SSL V3、TLS V1、SSH V1/V2 Support IP-MAC-PORT ternary binding Support ARP protection, IP source protection, DoS protection Support DHCP Snooping, DHCP attack protection Support 802.1X authentication, AAA Support port security and port isolation Support CPU protection function | ||||
| PoE Manage | Support PoE power limit Support PoE chip status check Support setting PoE port priority Support setting PoE power supply time period Support intelligent power supply | ||||
| ACL | Support L2 (Layer 2) ~ L4 (Layer 4) packet filtering function Support port mirroring, flow rate limiting, QoS remarking | ||||
| QoS | Supports 8 port queues Support port priority, 802.1P priority, DSCP priority Support SP, WRR, SP+WRR, WFQ priority scheduling algorithm | ||||
| Spanning tree | Support STP (IEEE 802.1d), RSTP (IEEE 802.1w) and MSTP (IEEE 802.1s) protocols Support loop protection, root bridge protection, TC protection, BPDU protection, BPDU filtering Support optical port 50ms switching | ||||
| Software Specifications | |||||
| Multicast | Support IGMP v1/v2/v3 Snooping Support MLD v1/v2 Snooping Fast leave mechanism and querier supporting Layer 2 multicast Support Layer 2 IPv4 static multicast Support Layer 2 IPv6 static multicast | ||||
| Storm suppression | Support multicast suppression Support broadcast suppression Support unknown unicast suppression | ||||
| Link aggregation | Support static aggregation Support dynamic aggregation Support based on IP, MAC, mixed load balancing mode A maximum of 32 aggregation groups are supported | ||||
| IPv6 | Support IPv6 Ping、IPv6 Tracert、IPv6 Telnet Support IPv6 SSH 、IPv6 SSL | ||||

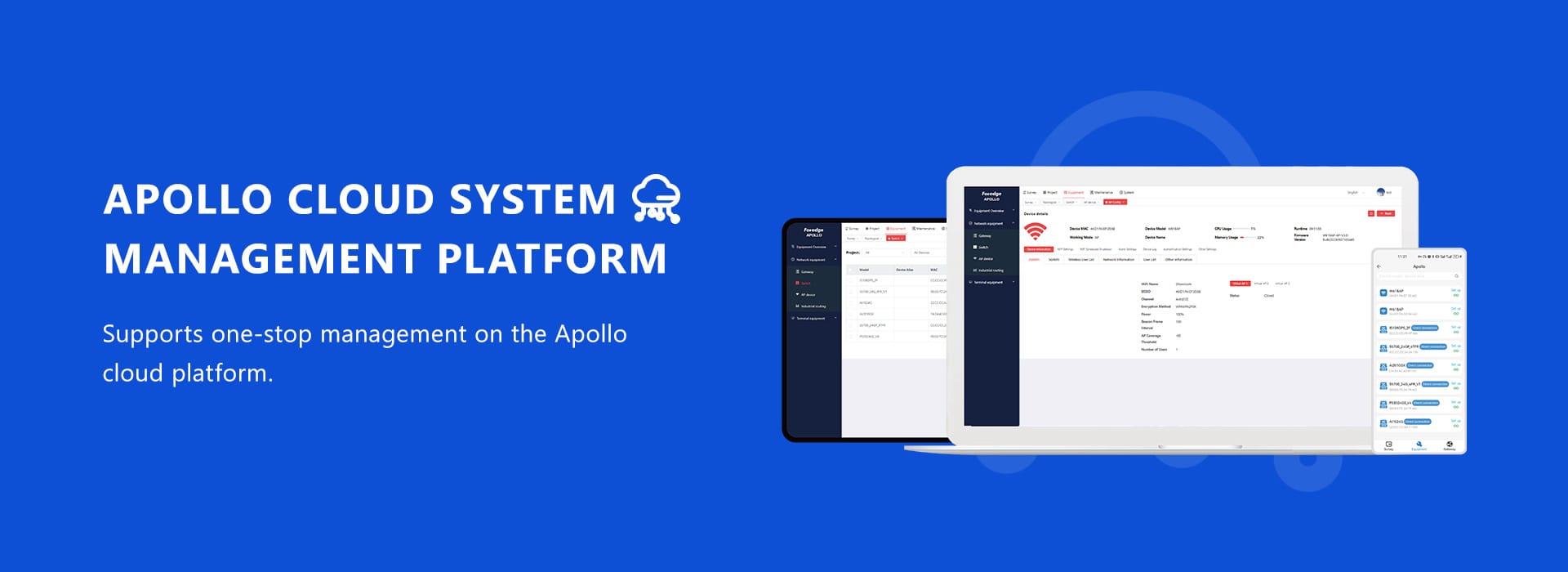

| Management and maintenance | Support WEB network management（ HTTP、HTTPS、SSL V3 ） Support CLI（ Telnet、SSH V1/V2、Local Console port） Support SNMP V1/V2/V3 Support RMON V1/V2 Support LLDP device discovery Support NTP time synchronization Support DNS Client Support CPU monitoring, memory monitoring Support system log, graded warning Support Ping, Tracert detection, cable detection Support Apollo cloud platform one-stop management and maintenance | ||||
