Specifications
| Hardware Specifications | |

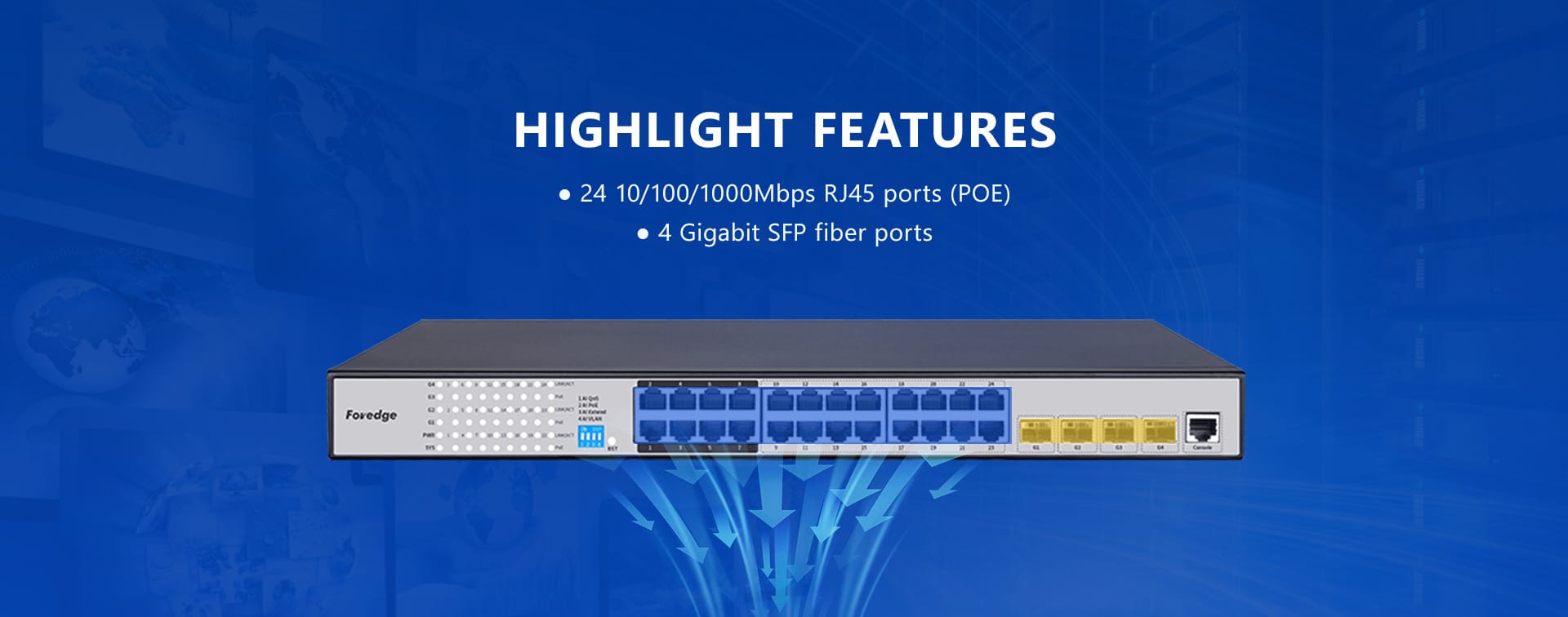

| Network Interface | ● 24 10/100/1000Mbps RJ45 ports (POE) ● 4 Gigabit SFP fiber ports ● 1 Console port |
| Network protocol standard | ● IEEE 802.3、IEEE 802.3i、IEEE 802.3u、IEEE 802.3ab、 IEEE 802.3z、IEEE 802.3ad、IEEE 802.3x、IEEE 802.1p、 IEEE 802.1q、IEEE 802.1d、IEEE 802.1s、IEEE 802.1w、 IEEE 802.3af、IEEE 802.3at |
| Performance Specifications | ● Bandwidth ：56Gbps ● Packet forwarding rate：41.7Mpps ● MAC address table：16K ● Port cache：12Mb ● Forwarding Mode: Store and Forward |
| LED Indicator light | ● 28 Link/Act indicators ● 24 PoE Indicator light ● 1 Power indicator ●1 SYS indicator |
| POE Pin | ● 1/2（ +） ，3/6 （ -） |
| Power support | ● Input power：AC 100-240V/50-60Hz ● Single port maximum output power：30W ● The maximum power of the whole machine：360W |
| Physical Specifications | ● Dimensions (LxWxH)：440mm×320mm×44mm |

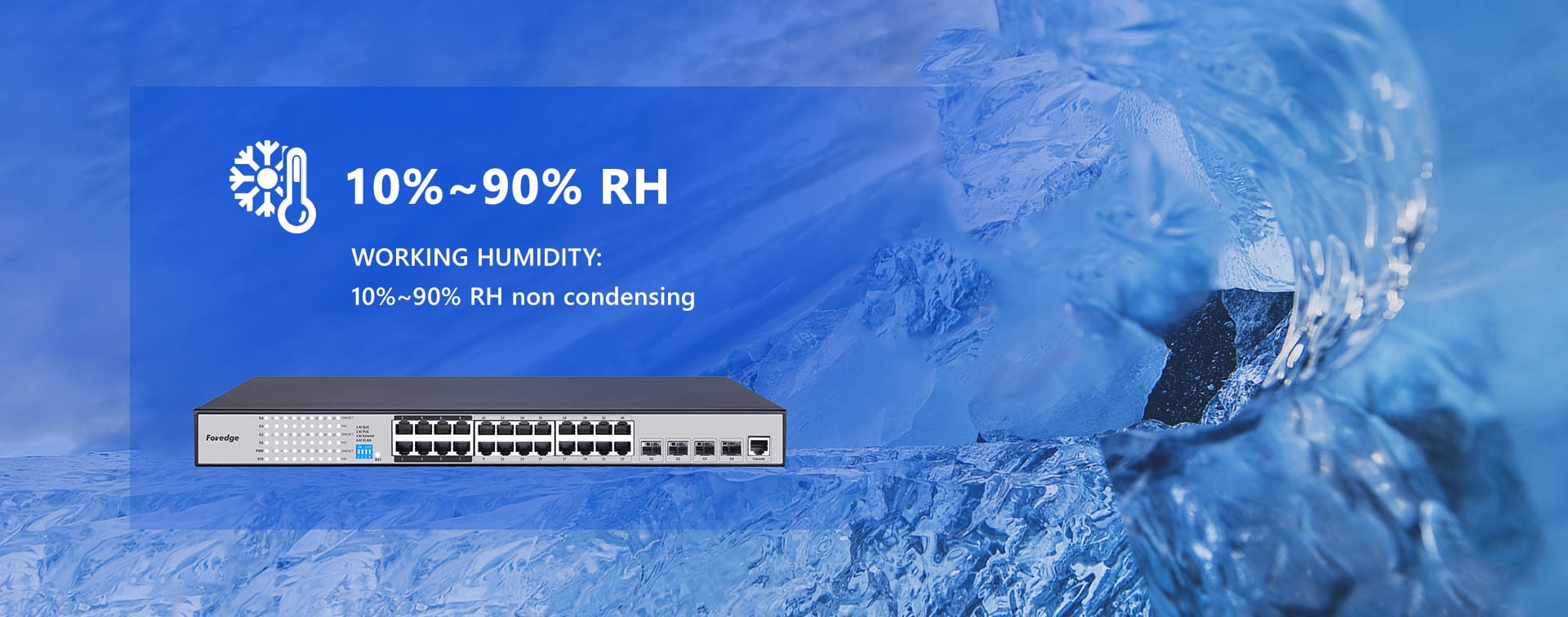

| Environmental Specifications | ● Operating temperature：0°C~40°C ● Storage temperature：-40℃〜70℃ ● Working humidity: 10%~ 90% RH non-condensing ● Storage humidity: 5%~90% RH non-condensing |
| Safety regulations | ● CE/ROHS/FCC |
| Software Specifications | |
| Protocol standard | IEEE 802.3:Ethernet Media Access Control (MAC) Protocol IEEE 802.3i:10BASE-TEthernet IEEE 802.3u:100BASE-TXFast Ethernet IEEE 802.3ab:1000BASE-TGigabit Ethernet IEEE 802.3z:1000BASE-XGigabit Ethernet (SFP) IEEE 802.3ad:Standard way to perform link aggregation IEEE 802.3x:flow control IEEE 802. 1p:LAN Layer 2 QoS/Cos protocol for traffic prioritization (multicast filtering function） IEEE 802.1q:VLANBridge operation IEEE 802.1d:STP Spanning tree IEEE 802.1s:MSTP Spanning tree IEEE 802.1w:RSTP Spanning tree IEEE 802.3af&at |
| One-click shortcut function | AI VLAN AI Extend AI PoE AI QoS |
| Layer 3 interface | Support Layer 3 interface Support IPv4, IPv6 address configuration Support ARP configuration ND configuration supported |
| Layer 3 routing | Support IPv4 static routing Support IPv4 dynamic routing RIP v1/v2 Support IPv4 dynamic routing OSPFv2 Support IPv6 static routing Support IPv6 dynamic routing RIPng Support IPv6 dynamic routing OSPFv3 |
| Software Specifications | |
| VLAN | Support 4K VLAN Support 802.1QVLAN、MAC VLAN ,IPVLAN，Voice VLAN |
| DHCP | Support DHCP server Support DHCP relay Support DHCP Snooping |
| MAC address table | Follow IEEE 802.1d standard Support MAC address automatic learning and aging Support static, dynamic, filtering address table |
| Safety features | Password protection Support to restrict user access based on port number, IP address, MAC address Support HTTPS、SSL V3、TLS V1、SSH V1/V2 Support IP-MAC-PORT ternary binding Support ARP protection, IP source protection, DoS protection Support DHCP Snooping, DHCP attack defense护 Support 802. 1X authentication, AAA Support port security and port isolation Support CPU protection function |
| PoE manage | Support PoE power limit Support PoE chip status check Support setting PoE port priority Support setting PoE power supply time period Support intelligent power supply |
| (ACL) | Support L2 (Layer 2) ~ L4 (Layer 4) packet filtering function Support port mirroring, flow rate limiting, QoS remarking |
| (QoS) | Supports 8 port queues Support port priority, 802. 1P priority, DSCP priority Support SP, WRR, SP+WRR, WFQ priority scheduling algorithm |
| spanning tree | Support STP (IEEE 802.1d), RSTP (IEEE 802. 1w) and MSTP (IEEE 802.1s) protocols Support loop protection, root bridge protection, TC protection, BPDU protection, BPDU filtering Support optical port 50ms switching |
| Software Specifications | |
| Multicast | Support IGMP v1/v2/v3 Snooping Support MLD v1/v2 Snooping Fast leave mechanism and querier supporting Layer 2 multicast Support Layer 2 IPv4 static multicast Support Layer 2 IPv6 static multicast Support IGMP v1/v2/v3 Layer 3 Multicast |
| Storm suppression | Support multicast suppression Support broadcast suppression Support unknown unicast suppression |
| Link aggregation | Support static aggregation Support dynamic aggregation Support based on IP, MAC, mixed load balancing mode A maximum of 32 aggregation groups are supported |
| IPv6 | Support Pv6 Ping、IPv6 Tracert、IPv6 Telnet Support IPv6 SSH 、IPv6 SSL |

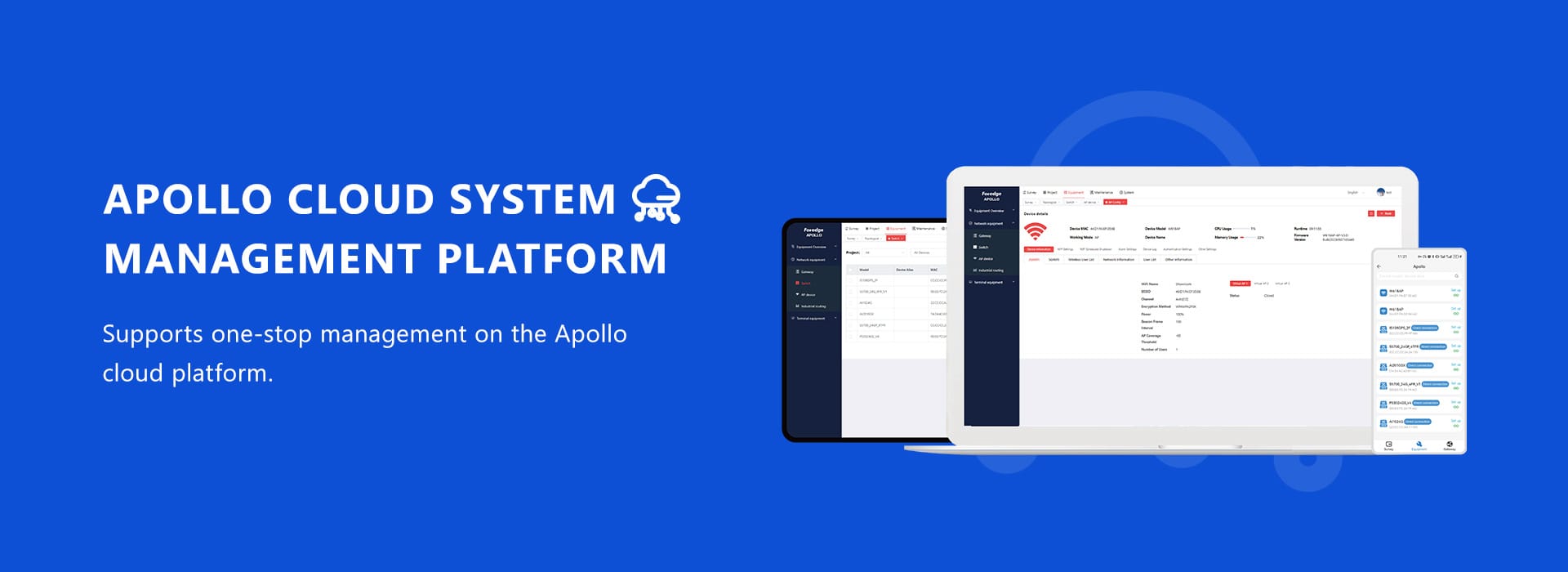

| Management and maintenance | Support WEB Managed（HTTP、HTTPS、SSL V3） Support CLI（Telnet、SSH V1/V2、Local Console Port） Support SNMP V1/V2/V3 Support RMON V1/V2 Support LLDP device discovery Support NTP time synchronization Support DNS Client Support CPU monitoring, memory monitoring Support system log, graded warning Support Ping, Tracert detection, cable detection Support Apollo cloud platform one-stop management and maintenance |
