Specifications
| Hardware Specification: | |

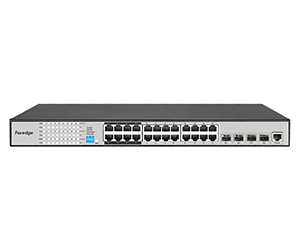

| Network Interface | ● 24*10/100/1000Mbps RJ45 ports ● 4*10G SFP+ ports ● 1*Console port |
| Network Protocol | ● IEEE 802.3,IEEE 802.3i,IEEE 802.3u,IEEE 802.3ab, IEEE 802.3z,IEEE 802.3ad,IEEE 802.3x,IEEE 802.1p, IEEE 802.1q,IEEE 802.1d,IEEE 802.1s,IEEE 802.1w |
| Performance | ● Bandwith ：128Gbps ● Packet forwarding rate：95.2Mpps ● MAC table size：16K ● Port buffer：12Mb ● Forwarding type：storage forwarding |
| LED Indicator | ● 28*Link/Act indicator ● 1*Power indicator ● 1*SYS indicator |
| Power Supplier | ● Power input：AC 100-240V/50-60Hz |
| Dimension | ● WxDxH：440mm×320mm×44mm |
| Evironment | ● Operating temperature：0°C~40°C ● Storage temperature：-40℃〜70℃ ● Operating humidity：10%~ 90% RH non condensing ●Storage humidity：5%〜90% RH non condensing |
| Safty Regulations | ● CE/ROHS/FCC |
| Software Specifications: | |
| Protocol Standards | IEEE 802.3:Ethernet media access control (MAC) IEEE 802.3i:10BASE-T Ethernet IEEE 802.3u:100BASE-TX Fast Ethernet IEEE 802.3ab:1000BASE-T Gigabit Ethernet IEEE 802.3z:1000BASE-X Gigabit Ethernet（ optical fiber） IEEE 802.3ad:Standard method of link aggregation IEEE 802.3x:Flow control IEEE 802.1p:LAN layer 2 qos/cos protocol related to traffic priority (multicast filtering function) IEEE 802.1q:VLAN Bridge operation IEEE 802.1d:STP Spanning tree IEEE 802.1s:MSTP Spanning tree IEEE 802.1w:RSTP Spanning tree |
| L3 Interface | Support L3 interface Support IPV4,IPV6 addresses configuration Support ARP configuration Support ND configuration |
| L3 Routing | Support IPV4 static routing Support IPV4 RIP v1/v2 Support IPV4 OSPFv2 Support IPV6 static routing Support IPV6 RIPng Support IPV6 OSPFv3 |
| Software Specifications: | |
| VLAN | Support 4K VLAN Support 802.1Q VLAN,MAC VLAN ,IP VLAN ，Voice VLAN |
| DHCP | Support DHCP server Support DHCP relay Support DHCP Snooping |
| MAC Table | Support IEEE 802.1d standard Support MAC addresses automatic learning and aging Support static, dynamic and filtered address tables |
| Security Features | Password guard Support restricting user access based on port number, IP address and MAC address Support HTTPS,SSL V3,TLS V1,SSH V1/V2 Support IP-MAC-PORT ternary binding Support ARP protection, IP source protection, DOS protection Support DHCP Snooping,DHCP Attack protection Support 802.1X certification,AAA Support Port security, port isolation Support CPU Protection function |
| ACL | Support L2(Layer 2)～L4(Layer 4) packet filtering function Support Port mirroring, flow speed restriction, QoS re marking |
| QoS | Support 8 port queues Support port priority, 802.1p priority, DSCP priority Support SP,WRR,SP+WRR,WFQ priority scheduling |
| STP | Support STP(IEEE 802.1d) ，RSTP(IEEE 802.1w) and MSTP(IEEE 802.1s) standard Support Loop protection, root bridge protection, TC protection, BPDU protection, BPDU filtering Support optical port 50ms switching |
| Software Specifications: | |
| Multicast | Support IGMP v1/v2/v3 Snooping Support MLD v1/v2 Snooping Support Fast leave mechanism and querier of layer 2 multicast Support Layer 2 IPv4 static multicast Support Layer 2 IPv6 static multicast Support IGMP v1/v2/v3 layer 3 multicast |
| Storm Suppression | Support Multicast suppression Support Broadcast suppression Support Unknown unicast suppression |
| LACP | Support Static convergence Support Dynamic convergence Support based on IP, MAC and mixed load balancing mode Support 32 aggregation groups at most |
| IPv6 | Support IPv6 Ping,IPv6 Tracert,IPv6 Telnet Support IPv6 SSH,IPv6 SSL |
| Network management | Support WEB management（ HTTP,HTTPS,SSL V3） Support CLI（Telnet,SSH V1/V2,local serial port） Support SNMP V1/V2/V3 Support RMON V1/V2 Support LLDP device discovery Support NTP time synchronization Support DNS Client Support CPU Monitoring, memory monitoring Support System log, classification warning Support Ping,Tracert Detection, cable detection Support Apollo cloud platform one-stop management and maintenance |
