Specifications
| Hardware Specifications | |

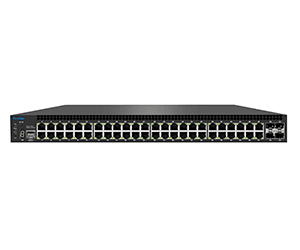

| Network Interface | ● 48 10/100/1000Mbps RJ45 pory（ POE ） ● 4 10GSFP+ fiber port ● 1 Console port |
| Network protocol | ● IEEE 802.3、IEEE 802.3i、IEEE 802.3u、IEEE 802.3ab、 IEEE 802.3z、IEEE 802.3ad、IEEE 802.3x、IEEE 802.1p、 IEEE 802.1q、IEEE 802.1d、IEEE 802.1s、IEEE 802.1w、 IEEE 802.3af、IEEE 802.3at |
| Performance Specifications | ● bandwidth ：176Gbps ● Packet forwarding rate：130.9Mpps ● MAC addres：16K ● port cache：12Mb ● Forwarding mode: store and forward |
| LED indicator | ● 52 Link/Act indicator ● 48 PoE indicator ● 1 Power indicator ● 1 SYS indicator |
| POE pin | ● 1/2（ + ） ，3/6（ – ） |
| Power | ● Input：AC 100-240V/50-60Hz ● Single port max power: 30W ● Total power：360W |
| Dimensions ( LxWxH) | ● 440mm×320mm×44mm |
| Environmental Specifications | ● Operating temperature：0°C~40°C ● Storage temperature：-40℃〜70℃ ● Working humidity：10%~ 90% RH non condensing ● Storage humidity：5%〜90% RH non condensing |
| Safety regulations | ● CE/ROHS/FCC |
| Software Specifications | |
| Protocol standard | IEEE 802.3: Ethernet media access control (MAC) IEEE 802.3i:10BASE-T Ethernet IEEE 802.3u:100BASE-TX fast Ethernet IEEE 802.3ab:1000BASE-T gigabit Ethernet IEEE 802.3z:1000BASE-X Gigabit Ethernet (optical fiber) IEEE 802.3ad:standard method of link aggregation IEEE 802.3x:flow control IEEE 802.1p:LAN layer 2 qos/cos protocol related to traffic priority (multicast filtering function) IEEE 802.1q:VLAN Bridge operation IEEE 802.1d:STP Spanning tree IEEE 802.1s:MSTP Spanning tree IEEE 802.1w:RSTP Spanning tree IEEE 802.3af&at |
| Layer3 interface | Support Layer3 interface Support IPv4 and IPv6 address configuration Support ARP configuration Support ND configuration |
| Layer 3 routing | Support IPv4 static routing Support IPv4 dynamic routing RIP v1/v2 Support IPv4 dynamic routing OSPFv2 Support IPv6 static routing Support IPv6 dynamic routing RIPng Support IPv6 dynamic routing OSPFv3 |
| Software Specifications | |
| VLAN | Support 4K VLAN Support 802.1Q VLAN、MAC VLAN ,IP VLAN ，Voice VLAN |
| DHCP | Support DHCP server Support DHCP relay Support DHCP Snooping |
| MAC address table | Comply IEEE 802.1d standard Support MAC address automatic learning and aging Support static, dynamic and filtered address tables |
| Safety features | Password protection Support restricting user access based on port number, IP address and MAC address Support HTTPS、SSL V3、TLS V1、SSH V1/V2 Support IP-MAC-PORT ternary binding Support ARP protection, IP source protection, DOS protection SupportDHCP Snooping、DHCP Attack protection Support802.1X certification、AAA Support Port security, port isolation SupportCPU Protection function |
| PoE management | Support PoE power limit Support PoE chip status check Support setting PoE port priority Support setting PoE power supply time period Support intelligent power supply |
| Access control(ACL) | SupportL2(Layer 2)～L4(Layer 4) packet filtering function Support Port mirroring, flow speed restriction, QoS re marking |
| QoS | Support 8 port queues Support port priority, 802.1p priority, DSCP priority SupportSP、WRR、SP+WRR、WFQ priority scheduling |
| Spanning tree | SupportSTP(IEEE 802.1d) ，RSTP(IEEE 802.1w) and MSTP(IEEE 802.1s) standard Support Loop protection, root bridge protection, TC protection, BPDU protection, BPDU filtering Support optical port 50ms switching |
| Software Specifications | |
| Multicast | Support IGMP v1/v2/v3 Snooping Support MLD v1/v2 Snooping Support Fast leave mechanism and querier of layer 2 multicast Support Layer 2 IPv4 static multicast Support Layer 2 IPv6 static multicast Support IGMP v1/v2/v3 layer 3 multicast |
| Storm suppression | Support Multicast suppression Support Broadcast suppression Support Unknown unicast suppression |
| Link convergence | Support Static convergence Support Dynamic convergence Support based on IP, MAC and mixed load balancing mode Support 32 aggregation groups at most |
| IPv6 | Support IPv6 Ping、IPv6 Tracert、IPv6 Telnet Support IPv6 SSH 、IPv6 SSL |
| Network management | Support WEB management（ HTTP、HTTPS、SSL V3 ） Support CLI（ Telnet、SSH V1/V2、local serial port） Support SNMP V1/V2/V3 Support RMON V1/V2 Support LLDP device discovery Support NTP time synchronization Support DNS Client Support CPU Monitoring, memory monitoring Support System log, classification warning Support Ping、Tracert Detection, cable detection Support Apollo cloud platform one-stop management and maintenance |
