Specifications
| Hardware Specification: | |

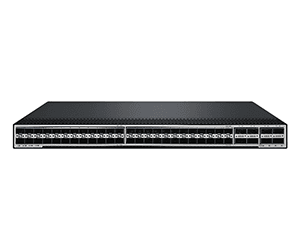

| Network Interface | ● 4 8 * 2 5 G/ 1 0 G SFP2 8 optical interfaces ● 8 * 1 0 0 G/ 4 0 G QSFP2 8 optical interfaces ● 1 * Console port ● 1 * Management port ● 1 * USB port |
| Redundant Design | ● Support 2 pluggable power, 1 + 1 backup mode ● Support 2 pluggable fans |
| Switching Capacity | ● 4Tbps |
| Packets Forwarding | ● 2 0 0 0 Mpps |
| RAM | ● 4 GB |
| FLASH | ● 64MB |
| EMMC | ● 3 . 5 GB |
| Port Buffer | ● 3 2 MB |
| Power Supplier | ● DC: -40V~-57V, rated voltage -48V ● AC: 100V~240V, rated voltage 110V/220V ● High voltage DC: 190-400V,rated voltage 240V/336V |
| Dimension | ● WxDxH： 440×420×44mm |
| Evironment | ● Operating temperature： 0 ° C~ 4 0 °C ● Storage temperature： -40℃〜 70℃ ● Operating humidity： 10% ~ 90% RH non condensing ● Storage humidity： 1 0 % 〜 9 0 % RH non condensing |
| Safty Regulations | ● CE/ ROHS/ FCC |
| Software Specifications: | |
| VLAN | Support 4K VLAN Support 1:1 and N: 1 802.1p based VLAN Mapping Support VLANs based on MAC, protocol, and IP Support Guest VLAN,Voice VLAN Support QinQ,selective QinQ |
| IP | Support 256K IPV4/64K IPV6 Support IPV4/IPV6 static routing Support GRE tunnel Support ECMP Support policy routing Support OSPF, IS-IS, BGP and other IPv4 Dynamic routing protocols Support OSPFv3, IS-ISv6, BGP4+ and other IPv6 Dynamic routing protocols Support IGMP ，IGMP Snooping ，MLD Snooping |
| VXLAN | Supports VXLAN Layer 2 switching, routing switching, and Layer 3 gateway Support EVPN VXLAN Support IPv6 VXLAN over IPv4 |
| EVPN | Support EVPN Support MP-BGP,EVPN’s RR function Support symmetric IRB |
| Reliable Features | Support STP/RSTP/MSTP Support BPDU protection, Root protection, and Loop protection; Support for BDPU Tunnel Support BPDU tunnel Support BFD session binding Static routing, VRRP, OSPF, IS-IS, BGP, RIP |
| Stacking | Supports horizontal virtualization technology and unified management of multiple devices |
| IPv6 | Support ND(Neighbour Discovery) ,support PMTU Support time period based ACLs Support IPV6 Ping ，Traceroute Support dual stacks of IPv4 and IPv6; Support multiple tunnel technologies Supports ACLs based on source IPv6 address, destination IPv6 address, layer 4 port, protocol type, etc |
| Software Specifications: | |
| QoS | Support L2-L4 packet filtering function, providing filtering based on MAC, IP, port, protocol, IP ToS, 802.lP priority, VLAN ID, SVLAN ID, VLAN range, etc. Support time period based ACLs Support Bandwidth throttling based on stream/VLAN (single speed and dual color) Support streaming of single speed tricolor and dual speed tricolor Support flow based priority scheduling and priority mapping Support scheduling algorithms such as SP/PQ, DRR, SP/PQ+DRR, etc Supports 8 QoS hardware priority queues per port Support 802.1p ，DSCP/ToS priority Support queue cache management strategies such as end of queue discarding and WRED |
| Security Features | Support hierarchical management of user permissions and hierarchical protection of command lines Support 802.1x,RADIUS,TACACS+ Support user level quantity limit Support user binding (port, source MAC, source IP address access control) Support SNMP login terminal restrictions Support SSH2.0 Support IP source guard Support black hole MAC Supports MAC address limit Support anti ARP and DDoS attacks |
| Maintenance | Support Console,Telnet,SSH protocols Support SNMP V1/V2/V3,support standard MIB Support Netconf management protocol,support REST API Support for the gNMI protocol,support Telemetry protocol Support FTP/TFTP Support unified management of logs, alarms, and debugging information Support user action logs Support RMON Supports port mirroring and stream mirroring Supports BootROM upgrade and remote online upgrade, supports hot patches |
