| Specifications | |||||

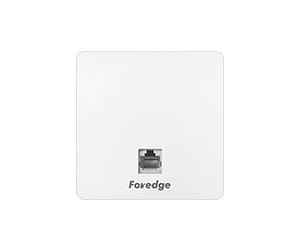

| Product Model | W60HAP V4 | ||||
| Flash | SPI Nand 128MB | ||||
| DDR | 256M | ||||
| WIFI ANTENNA | Built-in 2 2.4G & 5G dual-band antennas | ||||
| 2.4G operating frequency band | 2.4GHz ~ 2.484GHz | ||||
| 2.4G WIFI transmission protocol | 802.11 b / g / n /ax | ||||
| 5G operating frequency band | 5.150GHz～5.850GHz | ||||
| 5G WIFI transmission protocol | 802.11 a / n / ac /ax | ||||
| Maximum rate | 2.4G provides a maximum access rate of 574Mbps, and 5G provides a maximum access rate of 2402Mbps | ||||
| Maximum supported wireless access |
128+ | ||||
| 2.4G wireless power | 802.11b | 11M | 18±2dBm | 1M | 20±2dBm |
| 802.11g | 54M | 16±2dBm | 6M | 18±2dBm | |
| 802.11n HT20 | MCS7 | 15±2dBm | MCS0 | 17±2dBm | |
| 802.11n HT40 | MCS7 | 15±2dBm | MCS0 | 17±2dBm | |
| 802.11ax HT20 | MCS11 | 13±2dBm | MCS0 | 15±2dBm | |
| 802.11ax HT40 | MCS11 | 13±2dBm | MCS0 | 15±2dBm | |
| 5G Wireless Power | 802.11a | 54M | 15±2dBm | 6M | 17±2dBm |
| 802.11n HT20 | MCS7 | 14±2dBm | MCS0 | 16±2dBm | |
| 802.11n HT40 | MCS7 | 14±2dBm | MCS0 | 16±2dBm | |
| 802.11ac HT20 | MCS7 | 13±2dBm | MCS0 | 15±2dBm | |
| 802.11ac HT40 | MCS7 | 13±2dBm | MCS0 | 15±2dBm | |
| 802.11ac HT80 | MCS9 | 13±2dBm | MCS0 | 15±2dBm | |
| 802.11ax HT20 | MCS11 | 12±2dBm | MCS0 | 14±2dBm | |
| 802.11ax HT40 | MCS11 | 12±2dBm | MCS0 | 14±2dBm | |
| 802.11ax HT80 | MCS11 | 12±2dBm | MCS0 | 14±2dBm | |
| 2.4G receiving sensitivity | 802.11ax HT160 | MCS11 | 12±2dBm | MCS0 | 14±2dBm |
| 802.11b | 11M | -83dBm | 1M | -90dBm | |
| 802.11g | 54M | -70dBm | 6M | -84dBm | |
| 802.11n HT20 | MCS7 | -68dBm | MCS0 | -83dBm | |
| 802.11n HT40 | MCS7 | -66dBm | MCS0 | -83dBm | |
| 802.11ax HT20 | MCS11 | -56dBm | MCS0 | -83dBm | |
| 5G reception sensitivity | 802.11ax HT40 | MCS11 | -53dBm | MCS0 | -83dBm |
| 802.11a | 54M | -70dBm | 6M | -83dBm | |
| 802.11n HT20 | MCS7 | -67dBm | MCS0 | -83dBm | |
| 802.11n HT40 | MCS7 | -64dBm | MCS0 | -83dBm | |
| 802.11ac HT20 | MCS7 | -58dBm | MCS0 | -83dBm | |
| 802.11ac HT40 | MCS7 | -57dBm | MCS0 | -83dBm | |
| 802.11ac HT80 | MCS9 | -56dBm | MCS0 | -85dBm | |
| 802.11ax HT20 | MCS11 | -57dBm | MCS0 | -83dBm | |
| 802.11ax HT40 | MCS11 | -56dBm | MCS0 | -83dBm | |
| 2.4G EVM | 802.11b: ≤-10 dB；802.11g: ≤-25 dB；802.11n: ≤-28dB；802.11ax: ≤-35 dB | ||||
| 5G EVM | 802.11a: ≤-25 dB ；802.11n: ≤-28 dB ；802.11ac: ≤-32 dB; 802.11ax: ≤-35 dB | ||||
| Frequency deviation (ppm) | ±20ppm | ||||
| Interface (WAN) | 1 10/100/1000Mbps adaptive WAN port, supporting PoE 48V power supply; | ||||
| Interface (LAN) | 1 10/100/1000Mbps adaptive LAN port | ||||
| External buttons | Reset button (press and hold for 6-10 seconds to restore to factory default settings) | ||||
| powered by | PoE 802.3af | ||||
| Maximum power consumption | < 15W | ||||
| Status indicator | SYS light (three-color light, 5G only: blue; 2.4G only: green; system startup: red) | ||||
| Product size | 86mm*86mm*44mm (height of the part outside the wall is 14mm) | ||||
| weight | About 0.215kg | ||||
| Work Environment | Normal operating temperature: -10°C to 40°C; Storage temperature: -40°C to 70°C; Humidity: 5% to 95% (no condensation) | ||||
